Rhino Outcast F.S. mtb complete overhaul

Hello and Welcome, A friend contacted me the other day and asked me if I could possibly repair a friend's (of his) mountain bike . The owner needs it to get back and forth to work. He told me that they would also bring along a parts bike that might have some salvageable components.

Above: At this point I have already cleaned up the bike using about a half dozen Armor All Cleaning Wipes. I have also installed a salvaged seat post and saddle. The list of problems with this bike is long, so I won`t try to list them I will just talk about them as I go.

Above: The 26 inch mtb front wheel. The hub was very loose, (cones way out of adjustment) the tire was almost flat and the wheel needs some truing. The good news is! I pumped up the tires and they appear to be holding air. I was amazed to find grease on the bearings. And the grease did not have those hard specks I found in the grease on the New Thruster fixed gear bike. I should also mention that I inspected the tires very closely. They are still very pliable and don`t even show a hint of cracking. Also I did replace the cable housings that felt sticky do to rust. And both of the cables I took from the parts bike look like new. I did add a few drops of clear oil to the cable housings as well.

Above: After cleaning up the hub parts with White Lightning Clean Streak I regreased and reassembled it with the cones set properly (no grind/no play).

Above: I also cleaned up the hub inside and out. It now spins nicely and for quite a while. The truing needed is not that bad. I will true the wheels latter on without removing the tires. Or removing the wheels from the bike for that matter. On an entry level cruiser or mountain bike the using the wheel truing stand is not necessary.

Above: While the parts bike does look like a total p.o.s. it did prove to be invaluable before this overhaul was finished. I might add the 26 inch mtb tires and pedals on the parts bike show no wear at all. You know instead of going to the department store and paying 150.00 for a bike and then leaving it out in the yard to rust. Maybe this fool should have driven to a homeless shelter and given them 75.00 Then they would still have 75.00 and could have felt good about have done something positive for another human being. I do not mean to preach but being this wasteful is just wrong. Especially when so many are trying to get by with so little.

Above: Shown is the yellow front linear brake I salvaged from the parts bike. The original front linear brake, noodle and rubber boot were damaged. And miraculously these same parts were all in good condition on the parts bike. After some "fah nagle ing" I got the replacement front brake working pretty well. After I true the wheel I will be able to set it even tighter.



Above: I was able to regrease the headset bearings without completely removing the front end. Look closely and you can see my 1947 Western Flyer "fixed gear trike" propping up the suspension fork while I carefully wipe and re grease the lower headset bearings. I hung the handlebars and stem from the frame while doing this. I also brushed some rust off the wedge nut (stem) and smeared a little grease on it before reassembling the threaded headset /front end.

Above: The rear hub was also sloppy. Fortunately I did have the correct tool for removing the freewheel. After de greasing the axle, cones and bearings I started to reassemble the rear hub. It was at this point I noticed the rear axle was bent. This is a real kick in the a$$ because I really felt like I was making good progress. I removed the axle assembly from the parts bike and cleaned it up using White Lightning Clean streak. After matching them up I went ahead and greased the bearings and cups and reassembled the rear hub. It fit perfectly (even the spacers matched) and it is spinning real smoothly. I also cleaned and lubed the 7 speed freewheel and cleaned up the pie plate.

Above: I sprayed some WD-40 on the rusty rear derailleur springs and hinge points and wiped it off. Then I removed some slack from the cable and it is now shifting fine. I will spray some Tri-Flo on the rear D and sprocket group before I test ride it. I also sprayed some WD-40 on the rusty chain (in sections) and wiped it clean. I will put some chain lube on the chain before I ride it. I might mention, contrary what many people think.. WD40 is not a lubricant. But it is great at breaking down rust and loosening up rusty components.

Above: The Falcon front derailleur was froze up and the cable was badly frayed at the anchor point. I checked the Twist Grip Shifter and shift cable on the parts bike and they looked surprisingly good. So I carefully removed those and swapped them out with the originals on the Rhino. I found this Shimano front derailleur in my collection of salvaged front derailleurs. It seems to be straining to shift onto the largest chain ring. If this does not improve after lubrication and adjustment I will install a different front derailleur.

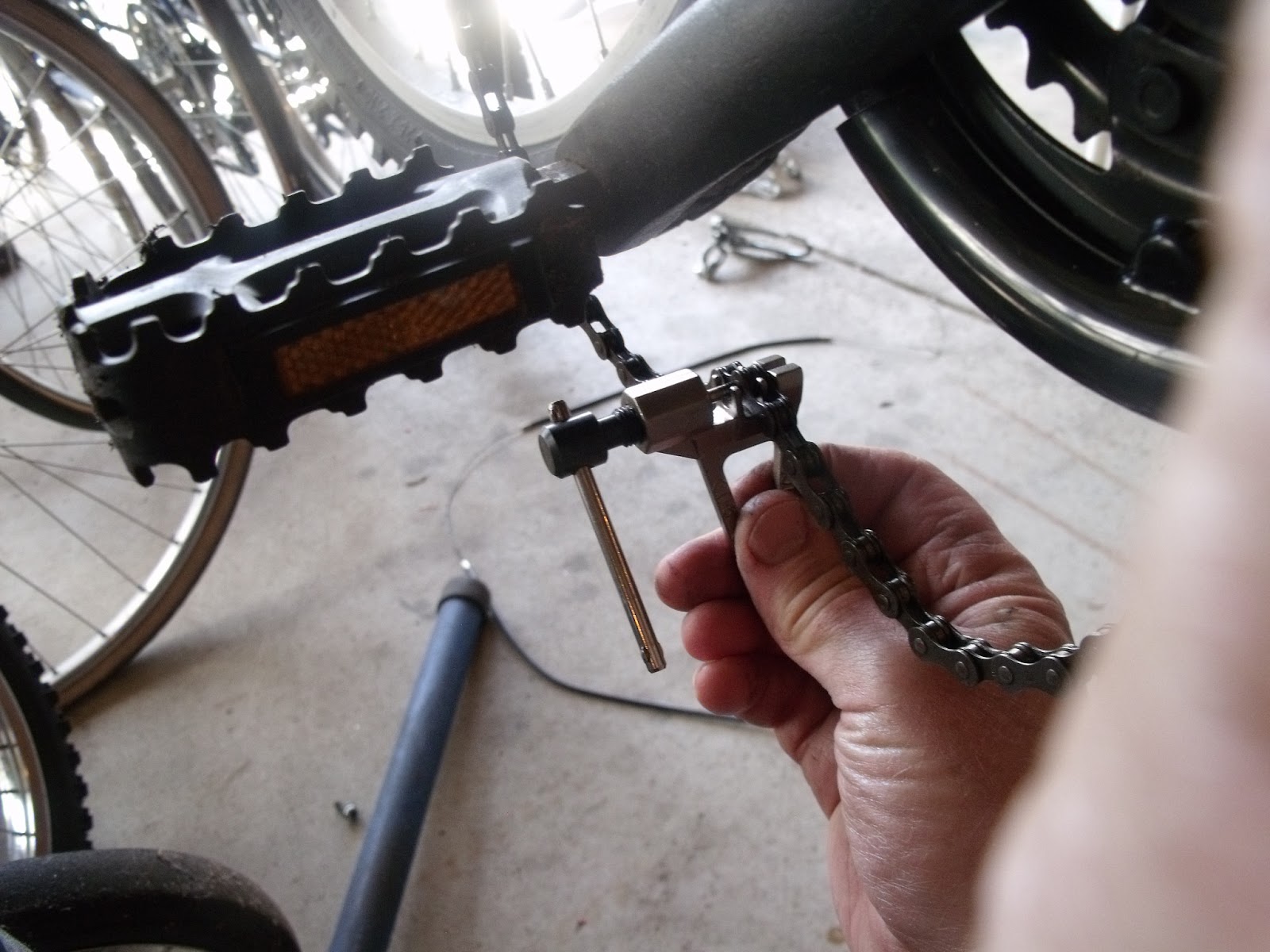

Above: Because the chain guide on the Falcon front derailleur was not removable I had to break down or open the chain to remove it. The little Park CT 5 Chain Tool is still working like a champ! Here I am finishing pressing the pin back into the chain. I am always careful to not remove the pin completely, this saves me a lot of aggravation. When using the tool to open the chain I always press the pin out towards me. This makes it much easier to press the pin back into place.

Above: QUICK TIP... I use a Velcro strap to hold the derailleur in position to give me slack while using the chain tool.

Above: Here I have removed the three piece crank and bottom bracket assembly. Earlier in the day I noticed the dust cap on the left side crank arm was missing and the nut looked real rusty. So I sprayed it "in advance" with a little WD 40. It worked great as the nut came off easily using a 6 point 14 mm socket. I have mentioned this before so I will again.. When removing the retainer nut or bolt for the crank or crank arm use a socket that matches the nut or bolt head. It it is six sided make sure your socket is as well. These nuts and bolt heads are shallow and are not always the best quality of hardened steel. This will greatly lessen your chances of rounding off the nut or bolt head.

Above: Here I am ready to spray the bottom bracket spline and bearings as well as the left side cup. This is a rush job (that don`t pay $hit) so there is no time for the Ultrasonic parts cleaner. As usual I have lined the pot with dirty paper towels and placed the strainer in the pot. This is a very inexpensive and effective way to clean parts. Just don`t use Mom's strainer and pot! As always I will be spraying them with White Lightning Clean Streak.



Above: Here the bottom bracket is reassembled. I want to repaint the left side crank arm with Rust Oleum flat black before reassembly. Which I am going to do right after I finish here. The easy adjust seat post collar clamp is also from my collection of salvaged parts. This work was done yesterday Saturday, it is now Sunday. If I paint now I can finish the bike and this post tomorrow. See you tomorrow! Sorry the mixtie project was delayed for this and other repair work. I will hopefully get that going again Tuesday or Wednesday.

Above: It is now Sunday evening. I forgot how fast flat black paint dries. The bike is finished! I took it for a short ride (3 miles) and it performed really well "for what it is". I have been spoiled riding my DiamondBack Overdrive 29er. This bike felt like a lot more work to get where I was going.

Above: Looking pretty sweet considering that "so far" I have only used salvaged and reconditioned components from the parts bike and my own stock. I say "so far" because I will probably be installing a new multi speed chain tomorrow. Other than that, I only have some cosmetic detail work (cleaning and rust removal) to do.

Above: I was amazed riding the bike by how smooth the bike felt. I think being a department store bike I expected it to feel more clunky. Also it did not jump gears at all. And the chain never slipped on the sprocket group in any gear. Also I was pleasantly surprised by how well the brakes worked. For liability reasons I made sure that the reflectors were remounted correctly. I have no idea if this fellow is going to be riding in the dark.

Above: I have not yet had a chance to take the L.L. Bean bike out for a real good ride. Maybe I will do that tomorrow morning :) That is about all I have for now. Until next time Please RIDE SAFELY and Remember to Always..RESCUE, RESTORE & RECYCLE
